| 首頁 > 監控器材 > AVENIR > 電動鏡頭 >SSL 06036 |
| Model No | SSLl06036A-1 | SSL 06036P-1 | SSL 06036G-1 | ||
| Image Format Cover | 1/3" ～ 1/4" | ||||
| 焦點距離 | 6.0 ～ 36 mm | ||||
| MAX光圈比率 | 1 : F1.4 | ||||
| Iris光圈 | 操作 | 視頻驅動 | 電機拉動 | ||
| Iris Range | F1.4(1.5) ～ 360 | F1.4(1.5) ～ Close | |||
| 速度 | 0.2 S | ||||
| 輸入電壓 | DC 8 ～ 16V Max. 30mA | DC 12V Max. 50mA | |||
| 靈敏度調整 | 0.5 ～ 1.0VP-P | * * * | |||
| Focus 焦點 | 控制方式 | 電動 | 電動／預置 | 電動 | |
| 速度 | 0.2 S | ||||
| 輸入電壓 | DC 12V Max. 50mA | ||||
| ZOOM 變焦 | 控制方式 | 電動 | 電動／預置 | 電動 | |
| 速度 | 0.2 S | ||||
| 輸入電壓 | DC 12V Max. 50mA | ||||
| Angle Field of View (D×H×V) |
1/4 inch | Wide | 40.1° × 32.3° × 24.4° | ||
| Tele | 7.3° × 5.9° × 4.4° | ||||
| 1/3 inch | Wide | 54.0° × 43.6° × 32.8° | |||
| Tele | 9.5° × 7.7° × 5.8° | ||||
| 2/3 inch | Wide | * * * | |||
| Tele | * * * | ||||
| 1 inch | Wide | * * * | |||
| Tele | * * * | ||||
| Minimum Object Distance | 1.3 m | ||||
| Back Focal Length | 12.50 mm | ||||
| Effective Diameter | Front | φ35.0 mm | |||
| Rear | φ11.0 mm | ||||
| Filter Screw size | M43.0 P=0.75 | ||||
| Mount / Flange Back | CS / 12.5mm | ||||

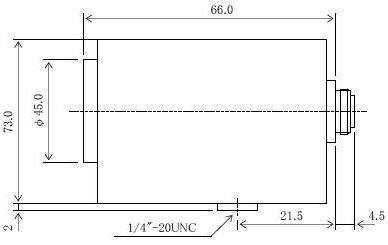

| Mechanical Dimension (W×H×L) | 59mm × 73mm × 66mm | ||||
| Weight | 345.0g | 364.0g | 360.0g | ||
| Application Temperature Range | -10°C ～ +50°C (+14°F ～ +122°F) | ||||
