| 首頁 > 監(jiān)控器材 > AVENIR > 定焦距鏡頭 > SSE0284 & SSE0284NI |
| Model No | SSE0284 | SSE0284NI | |
| Image Format Cover | 1/3" ～ 1/4" | ||
| 焦點距離 | 2.8 mm | ||
| MAX光圈比率 | 1 : F1.4 | ||
| Iris光圈 | 操作 | 手動調節(jié) | |
| Iris Range | F1.4 ～ Close | ||
| FocusOperation | Focus 焦點 | 手調 | |
| Scale | Far Near 遠近 | ||
| 視角 (D×H×V) |
1/4 inch | 87.2° × 70.3° × 53.0° | |
| 1/3 inch | 117.4° × 95.6° × 72.6° | ||
| 2/3 inch | * * * | ||
| 1 inch | * * * | ||
| Minimum Object DistanceMIN可視距離 | 0.2 m | ||
| Back Focal Length 后焦長度 | 9.30 mm | ||
| Effective Diameter | Front 前部 | Φ19.7 mm | |
| Rear 后部 | Φ8.9 mm | ||
| Filter Screw size | --- | ||
| Mount | CS / 12.5mm | ||
| Mechanical Dimension(D×L)機械尺寸 | φ30mm × 36.2mm | ||
| Weight重量 | 54.5g | ||
| 應用溫度環(huán)境 | -10°C ～ +50°C (+14°F ～ +122°F) | ||

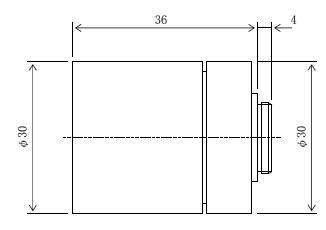

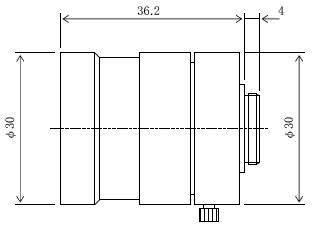

SSE0284 SSE0284NI
