| 首頁 > 監控器材 > AVENIR > 自動光圈鏡頭 >SSG0412 / SSG0412NB |
SSG0412
| Model No | SSG0412 | SSG 0412NB | |
| Image Format Cover | 1/3" ～ 1/4" | ||
| 焦點距離 | 4.0 mm | ||
| MAX光圈比率 | 1 : 1.2 | ||
| Iris光圈 | Control Method | 視頻驅動 | 直流驅動 |
| Iris Range | F1.2 ～ 360 | ||
| 速度 | Approx. 1.5 sec | * * * | |
| Input Voltage & Current | DC 8 ～ 16V Max. 30mA | * * * | |
| Sensitivity Adjustment | 0.5 ～ 1.0VP-P | * * * | |
| FocusOperation | Focus 焦點 | 手調 | |
| Scale | * * * | ||
| 視角 (D×H×V) |
1/4 inch | 59.6° × 48.3° × 36.5° | |
| 1/3 inch | 78.9° × 65.1° × 49.8° | ||
| 1/2 inch | * * * | ||
| 1 inch | * * * | ||
| Minimum Object DistanceMIN可視距離 | 0.1 m | ||
| Back Focal Length 后焦長度 | 10.14 mm | ||
| Effective Diameter | Front 前部 | φ20.0 mm | |
| Rear 后部 | φ9.26 mm | ||
| Filter Screw size | * * * | ||
| Mount | CS / 12.5mm | ||

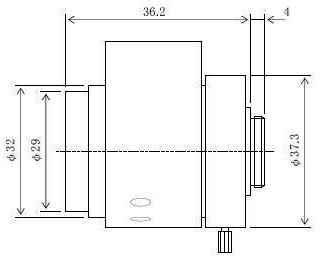

| Mechanical Dimension(D×L)機械尺寸 | φ29mm × 43.9mm × 32.0mm | ||
| Weight重量 | 55.4g | 54.3g | |
| 應用溫度環境 | -10°C ～ +50°C (+14°F ～ +122°F) | ||
